When planning a home or commercial building in Malaysia, people often focus on walls, paint, and tiles—but neglect the most crucial element above all: the roof. And not just the roof type, but roof structure details—the nuts and bolts that make your building strong, safe, and weatherproof.
Let’s uncover the 7 essential roof structure details that will make or break your next construction project!
🧱 1. Truss Design: The Skeleton of Your Roof
At the heart of any roof structure is the truss system. Whether it’s a King Post, Queen Post, or Howe Truss, these components form the backbone. Understanding the right truss to use—based on span, load, and usage—is key to a long-lasting and safe roof.
✅ Tip: Always consult a structural engineer to determine the appropriate spacing and configuration based on your roof load.
📐 2. Pitch and Slope: It’s Not Just About the Angle
In Malaysia’s rainy climate, roof slope plays a vital role in drainage and ventilation. A steeper pitch helps rainwater flow off quickly, preventing leaks and water pooling.
✅ Recommended: 20° to 35° pitch for most structures
✅ Bonus: Proper slope can also reduce heat buildup inside the building
🔧 3. Ridge Beam and Rafters: Top-Level Support

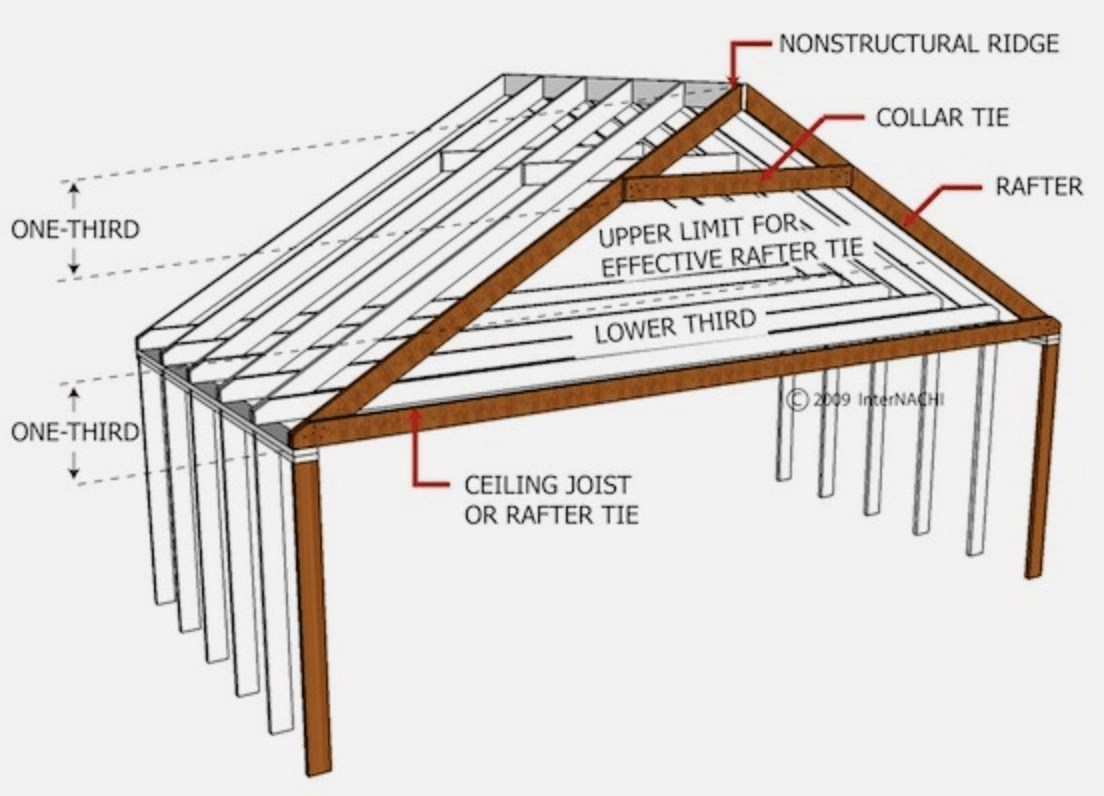

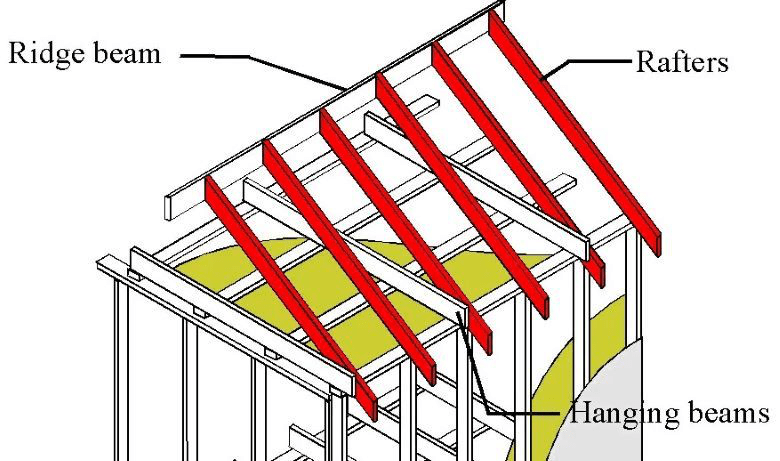

The ridge beam runs along the top of the roof, supporting the upper ends of the rafters. These roof structure details ensure your roof doesn’t sag or collapse over time.
✅ Tip: Rafters must be properly spaced and sized according to load requirements
✅ Pro tip: Use galvanized steel or treated timber to prevent decay or rust
🛠️ 4. Purlins and Battens: Hidden Heroes

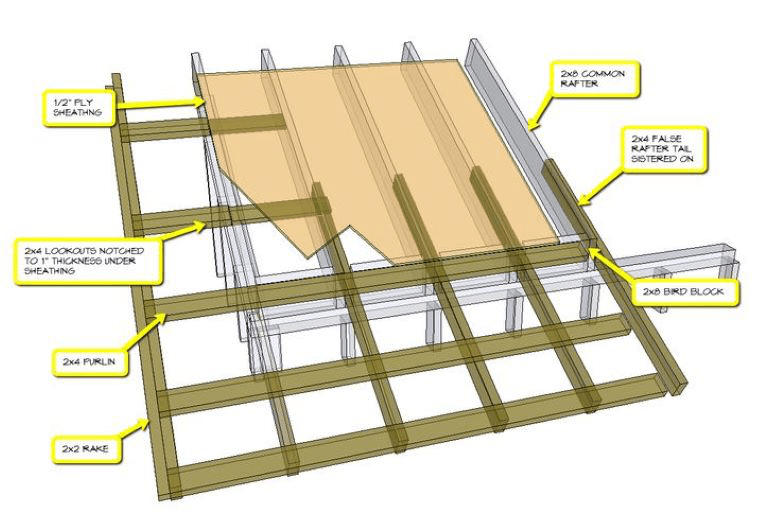

These horizontal members support the roof covering (tiles, metal sheets, etc.). While they’re often ignored, improper spacing or weak purlins can lead to cracked tiles or even roof collapse.
✅ Purlins support the main trusses
✅ Battens hold up the roofing material
Remember: strong roof coverings start with a strong base!
💨 5. Ventilation and Insulation: Comfort and Longevity
These roof structure details can affect your electricity bill and comfort level. Without ventilation, hot air builds up under the roof; without insulation, that heat enters your building.
✅ Solutions: Ridge vents, soffit vents, reflective foil, PU foam
✅ Bonus: Proper airflow also prevents mold and mildew in your attic
🌧️ 6. Flashing and Gutter Systems: Rainproof Your Structure
Flashings are metal strips installed at joints (like where roof meets wall) to prevent water from seeping in. Gutters help drain water away from the building foundation.
✅ Don’t skip this! It’s one of the most overlooked yet important roof structure details in Malaysia
✅ Materials: Use anti-rust aluminum or stainless steel
🧰 7. Roof Bracing: The Hidden Reinforcement
Roof bracing prevents swaying and collapse under wind or uneven load distribution. It’s especially crucial for industrial buildings or high roofs.
✅ Bracing types: Cross bracing, lateral bracing
✅ Location: Installed in both horizontal and vertical planes
🏠 8. Don’t Forget Local Compliance and Safety Standards
Many builders overlook the importance of aligning roof structure details with Malaysia’s building codes and safety requirements. Whether it’s the Uniform Building By-Laws (UBBL) or local council approvals, every element—from truss spacing to slope angle—must meet compliance.
✅ Always consult a licensed engineer
✅ Use certified materials that meet CIDB (Construction Industry Development Board) standards
✅ Ensure roof plans are reviewed before construction starts
Failure to comply doesn’t just risk fines—it puts lives at risk and can delay your project.
🌱 9. Sustainable Roofing Is the Future
Eco-conscious roofing is growing fast in Malaysia. Builders are now integrating rainwater harvesting systems, solar panel-ready trusses, and recycled roofing materials. These enhancements don’t just reduce carbon footprints—they can cut long-term operational costs too.
✅ Choose steel that’s recyclable
✅ Consider cool roofing materials to reduce indoor temperatures
✅ Plan space for future solar panel installations
🧠 Final Thoughts: Every Detail Matters in Roof Design
Your roof isn’t just a pretty triangle—it’s a complex system of engineered parts. By understanding the importance of roof structure details, you ensure your building is safe, energy-efficient, and built to last through Malaysia’s intense rain and sun.
